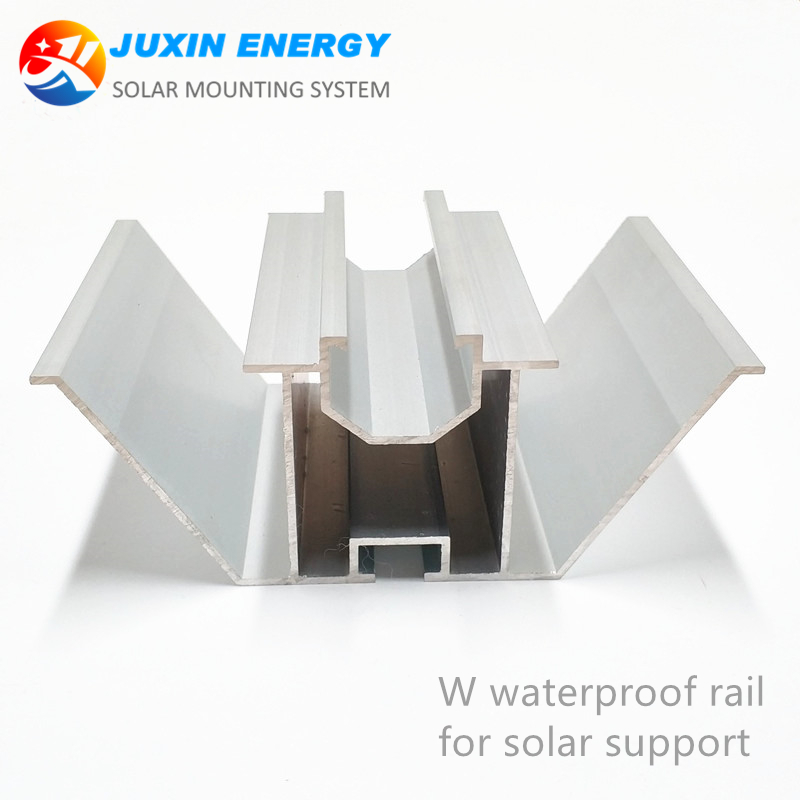

W waterproof rail for solar support accessories aluminum track

$5.89
  • Detail
  • Parameters

W waterproof guide photovoltaic solar support accessories aluminum track


Waterproof photovoltaic stents is the 2019 latest products comply with the demand of the market. The waterproof stent is mainly applied to household photovoltaic tents, awnings, industry and commerce caigang watts roof etc.


W waterproof guide rail is the most critical components in waterproof photovoltaic stents, referred to as the "dominant sink".

光伏防水支架Waterproof solar photovoltaic support.jpg

防水光伏支架部件构成Components of waterproof photovoltaic support.jpg





▼W waterproof guide application cases:



▼Different purlin (beam) and W waterproof installation guide:


W导水槽与C型钢檩条固定.jpg   W导水槽与方钢的连接方式.jpg




To learn more about that, please contact us: 15895371739


Product Name
W waterproof solar support
Spec.
L≤6600mm
Material
Aluminum 6063-T5
Surface Treatment
Anodized
Wind Load
40m/s
Packaging
Standard export carton & Plywood pallet
Lead Time
6 Working Day
Price
$5.89
