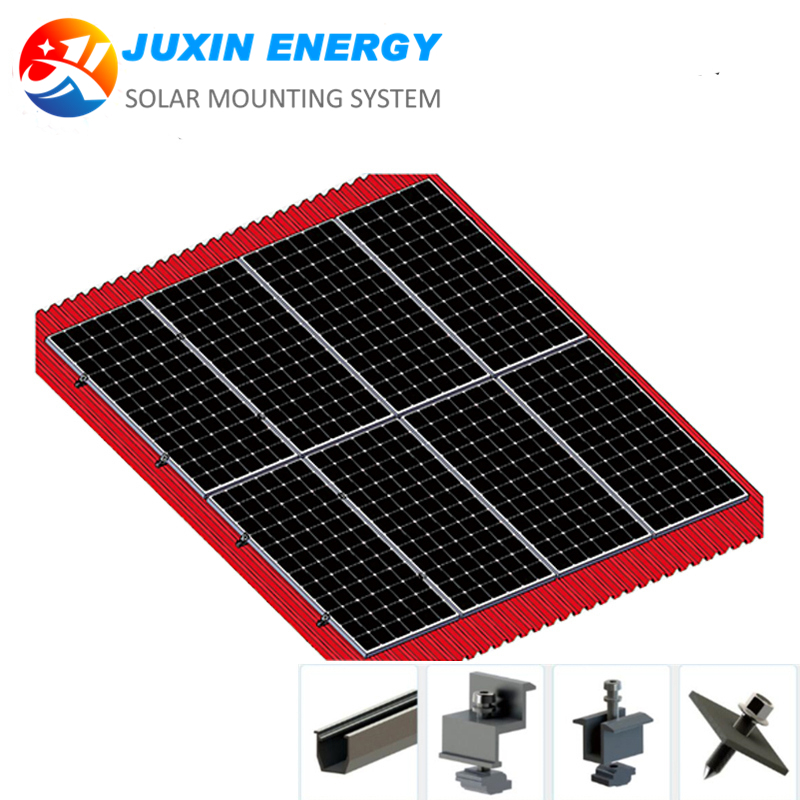

JX002 Non-clip Steel Tile Roof Solar Panel Installation Bracket with U-shaped Support

JX002 Non-clip Steel Tile Roof Solar Panel Installation Bracket with U-shaped Support

share

JX002 Non-clip Steel Tile Roof Solar Panel Installation Bracket with U-shaped Support

$0.00
  • Detail
  • Parameters

JX002 Non-clip Steel Tile Roof Racking System


Features:



Technical Information:

Installation Site

Metal Tile roof

ApplicationFramed solar panel for any size
Racking materialsAluminum & stainless steel 304
Max wind speedUp to130mph(60m/s)
Design snow loadUp to 30psf(1.4KN/m²)
Inclination0 degree (the same angle as roof)
Panel directionvertical or landscape
WarrantyDesign Life for 25 years, quality assurance for 12 years


Installation Detailed Images:

JX002梯形彩钢瓦光伏支架（U型导轨） (6).jpgJX002梯形彩钢瓦光伏支架（U型导轨） (8).jpg

Packing & Delivery:

Packing & Delivery.jpgPacking & Delivery (2).jpg

Product Name
Tile Roof Racking System
Model No.
JX002
Surface Treatment
Anodized
Wind Load
40m/s
Packaging
Standard export carton & Plywood pallet
Lead Time
6 Working Day
Price
$0.00
